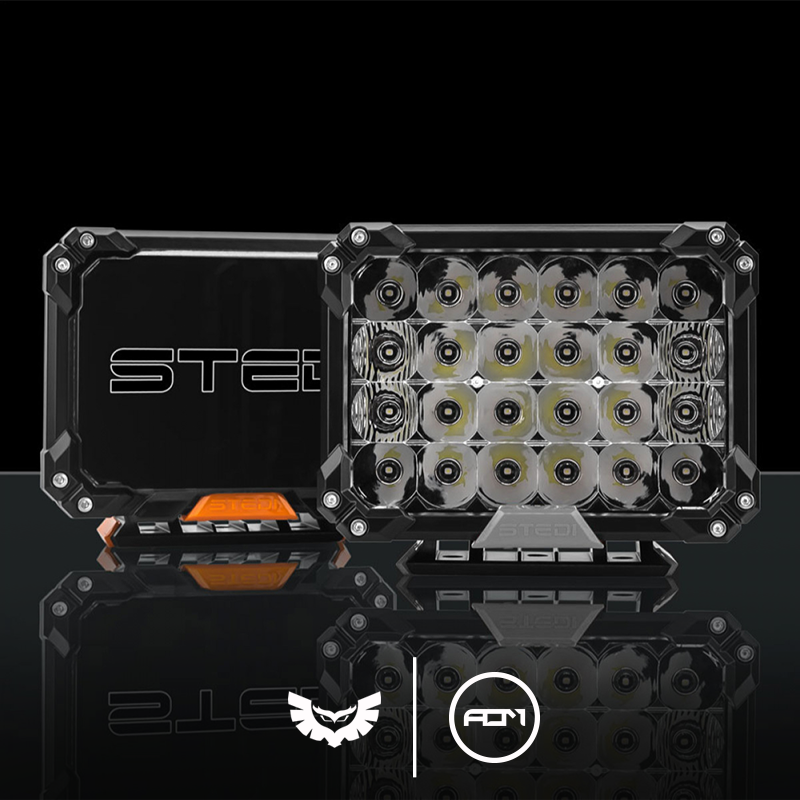

STEDI Quad Pro Driving Lights (Pair)

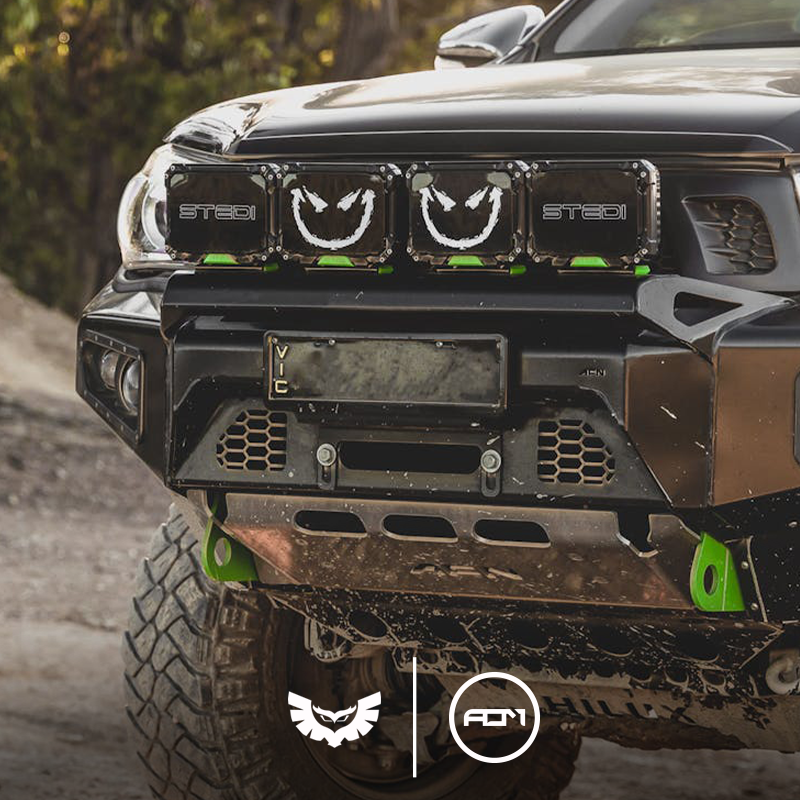

The compact housing design offers endless possibilities in terms of mounting locations.  We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars and offroad animal bars.

KEY FEATURES

• Includes our legendary Easy-Fit plug and play high beam wiring harness
• IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight.
• 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.
• Environmentally sealed Deutsch DT-2 connectors
• RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.
• High-Pressure Die-Cast Bracket
• Spread and Spot beam reflectors built-in.

The price quoted is for a pair & includes our legendary Plug & Play Smart Wiring harness.

TECH SPECS

• LED: 24 x Oslon High-Flux LED

• Raw lumens: 17,040 (pair)

• Tested lumens: 11,360 (pair)

• Amp draw: 7.4A @ 13.2v (each)

• Power draw: 97W (each)

• Candela: 693,889cd

• Beam pattern: 4 x spread, 20 x pencil beam

• Ingress protection: IP68 | Submersible up to 3m

• Colour temp (CCT): 5700K

• Voltage compatibility: 12v & 24v

• Lumen maintenance: 50,000 LM-80

• Weight: 1.4kg (including cover) (each)

• Photometric data:

  • 10 m: 6,938 Lx

  • 50 m: 277 Lx

  • 200 m: 17 Lx

  • 300 m: 7.7 Lx

  • 400 m: 4 Lx

  • 500 m: 2.7 Lx

  • 833 m: 1 Lx

Registered Design 202013629
