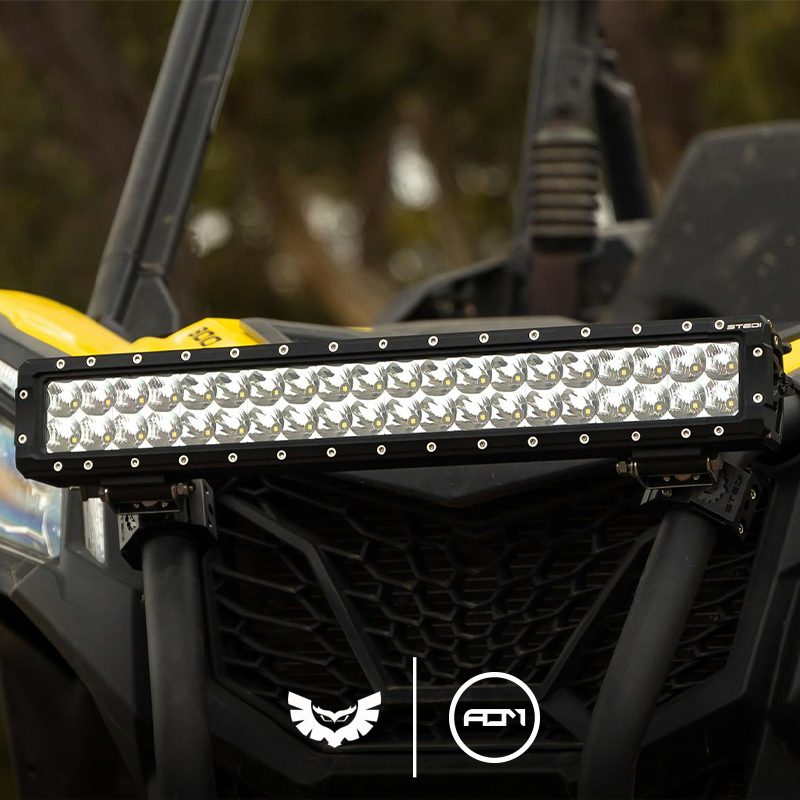

STEDI ST4K Light Bar - 22" 120W

SKU LEDST4K-22-40L
Price

$259.00

STEDI's all new ST4K™ series is the culmination of years of proven experience in delivering market leading LED auxiliary lighting. The ST4K™ range feature Stedi's all new 3-part beam adopted from their flag-ship Type-X driving light which has proven to outperform spot lights costing 3 x the price.



Features:



  • ST4K-40 features 40 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly match optical properties.



  • 8 Flood + 24 Spot + 8 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 499m



  • Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).



  • Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.



BUILT TO GO ALL NIGHT

  • A360.0 Cast face plate, extruded Aluminum heat sink | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.



  • Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.



  • IP68 | Dust & Particle tight + Water-proof up to 3 meters – Drown it, we insist!



  • Environmentally sealed Deutsch ® DT connector.

Backed by a nonsense 5-year replacement warranty.



What's In The Box:



  • 1 x ST4K-40 STEDI Oslon LED Light Bar
  • 2 x Brushed Stainless Steel Side Brackets
  • 2 x Adjustable Sliding Brackets
  • Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
  • Cable Ties
  • Wiring Instructions





Specifications

LED MANUFACTURER  OSRAM (Oslon) ®
LED COUNT 40
VOLTAGE  12V & 24V
LENS MATERIAL OPTICAL GRADE, HARD COATED LEXAN
LUMENS 9,600 LUMENS
HOUSING MATERIAL A360.0 Cast face plate, extruded Aluminum heat sink
AMPERES 8.9A @ 13.6v
LIFESPAN 50,000
FLOOD BEAM 50°
SPOT BEAM 5.8°
INGRESS PROTECTION IP69K
OPERATING TEMP -40˚C ~ +150˚C
WEIGHT 2.880kg




ENQUIRE.

After a quote on supply and fitment? Or just need advice on what best suits your 4WD plans? Get in contact with the team ,we’re here to help you build it right.
